| Technical Details |
|
|
| Due to continuous research and development, the technical specifications, service in warranty period and
features are subject to change without prior notice. |
|
| TECHNICAL DETAILS OF ELR + MCB IS FUNCTIONALLY DEPENDENT ON LINE VOLTAGE |
|
| 1 |
Number Of Pole |
:- |
2 Pole for 1Ø, 4 Pole for 3Ø & 3 Pole for HL |
| 2 |
Rated Voltage (Un) |
:- |
220V, 50 Hz for 1Ø & 415V, 50 Hz for 3Ø |
| 3 |
Permissible Ambient Temperature |
:- |
-10°C to 55°C |
| 4 |
Limiting Of The Line Voltage |
:- |
Ux = 110V to Uy = 500V, 50Hz, AC |
| 5 |
Rated Residual current (IDn) |
:- |
5mA to 50mA for 1Ø & 7mA to 70mA for 3Ø |
| 6 |
Break Time Of RCBOs |
:- |
Less Then 0.03 Second |
| 7 |
Over Volt Cut OFF |
:- |
290V, 50Hz, ± 3% Respect to Neutral |
| 8 |
O/V Cut OFF Time |
:- |
Less Then 0.1 Seconds |
| 9 |
Rated Frequency |
:- |
50 Hz |
| 10 |
Breaking Capacity |
:- |
10000 Ampeer |
| 11 |
Operational Life |
:- |
Greater Than 20000 Operation |
| 12 |
Product Life |
:- |
Greater Than 10 Years |
| 13 |
Standard Reference |
:- |
Nearest to IS 12640 : Part-II |
| 14 |
Terminal |
:- |
Built In 25 mm2 |
| 15 |
Mounting |
:- |
Mobile Surface Mounting (Screw Type) & Din Rail Mounting |
| 16 |
Insulation Resistance |
:- |
5M Ohms at 1KV, DC |
| 17 |
Rated Current |
:- |
25Amps, 40Amps & 63 Amps, MCB Curve = B |
| 18 |
Dimentions in mm |
:- |
1Ø & 3Ø |
|
|
We can provide ELR + MCB at least worth.  1250/- with better quality and maximum quantity in 1Ø. We are also able to supply ELR + MCCB worth Rs. as per your customise requirement up to 1000Amps, 3 Pole for 3Ø Heavy Load |
| |
| Characteristic Graph of ELR + MCB : |
|
|
|

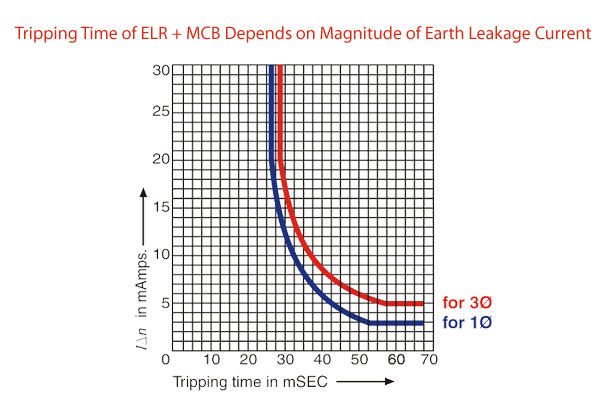

| Tripping Time of ELR + MCB Depends on Magnitude of Earth Leakage Current |
|

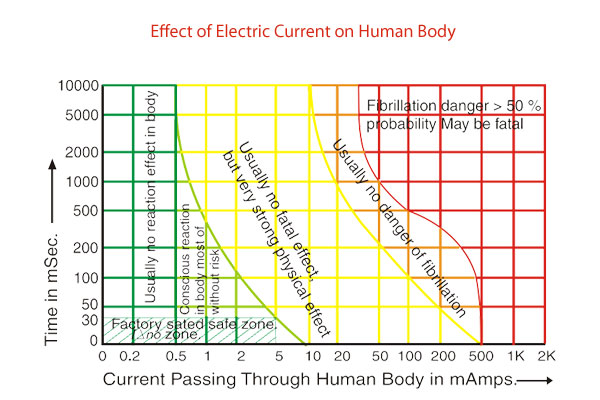

Effect of Electric Current on Human Body |
|

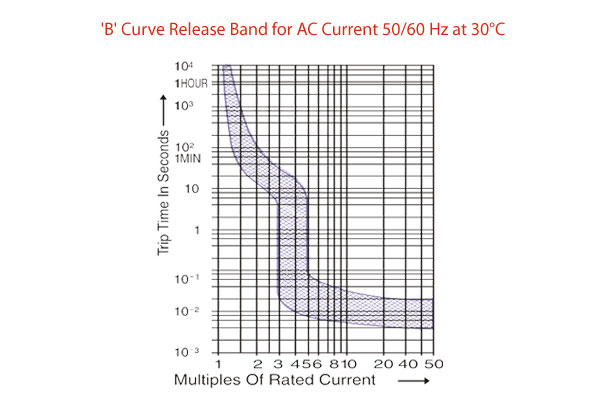

'B' Curve Release Band for AC Current 50/60 Hz at 30°C |
|
|
|
|
|
|
|
|
|
| At Ambient °C |
Rated current |
| 25 Amp |
40 Amp |
63 Amp |
| 20 °C |
33.7 |
42.2 |
66.6 |
| 25 °C |
33.2 |
41.5 |
64.8 |
| 30 °C |
32.0 |
40.0 |
63.0 |
| 35 °C |
31.3 |
39.1 |
61.5 |
| 40 °C |
30.5 |
38.3 |
59.7 |
| 45 °C |
29.5 |
37.1 |
57.2 |
| 50 °C |
28.7 |
35.9 |
56.0 |
| 55 °C |
27.7 |
34.7 |
52.8 |
| Power Loss |
3.4 W |
3.8 W |
5.9 W |
Wire Size
*Used Copper Wire only |
4 mm2 |
10 mm2 |
16 mm2 |
|
|
|
 |
 |
|
 |
|
|
|
